Products >> Surge protector >> AC SPD

  • Compact type AC SPD 3P+N JSP-06
  • Compact type AC SPD 3P+N JSP-06
  • Compact type AC SPD 3P+N JSP-06
  • Compact type AC SPD 3P+N JSP-06
Compact type AC SPD 3P+N JSP-06 Compact type AC SPD 3P+N JSP-06 Compact type AC SPD 3P+N JSP-06 Compact type AC SPD 3P+N JSP-06

Compact type AC SPD 3P+N JSP-06

Compact type AC SPD 3P+N JSP-06

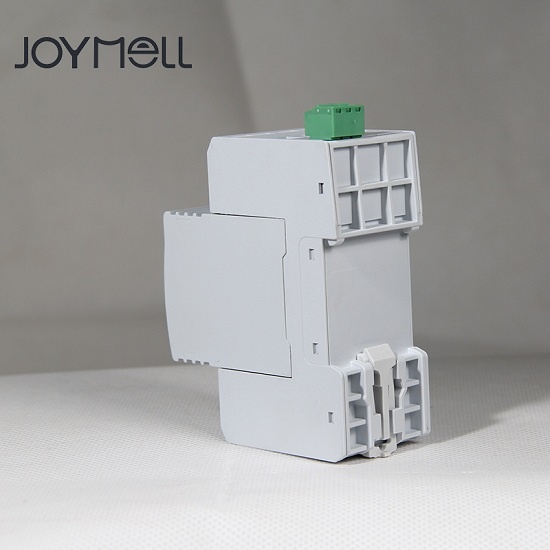

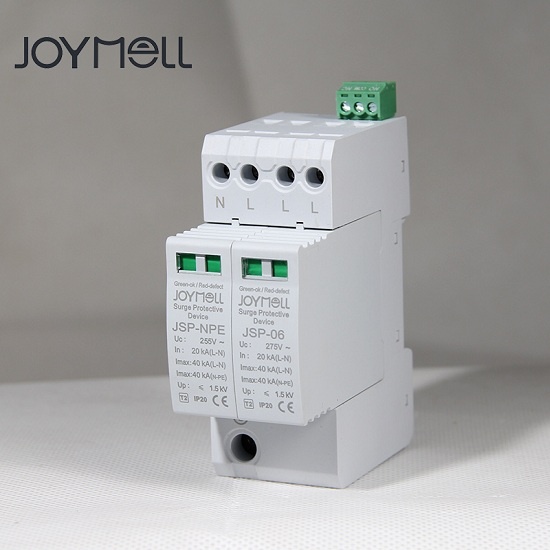

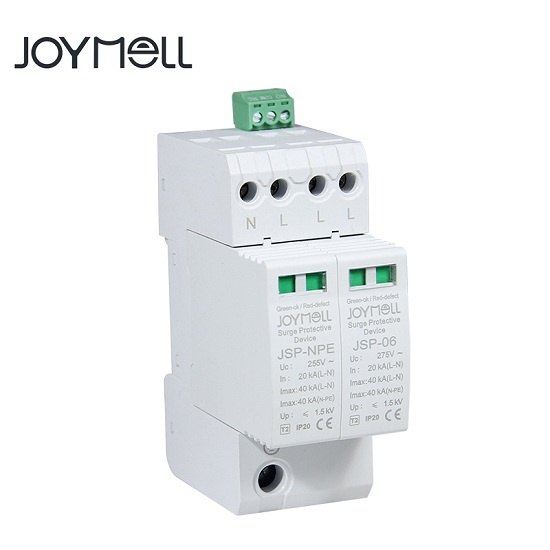

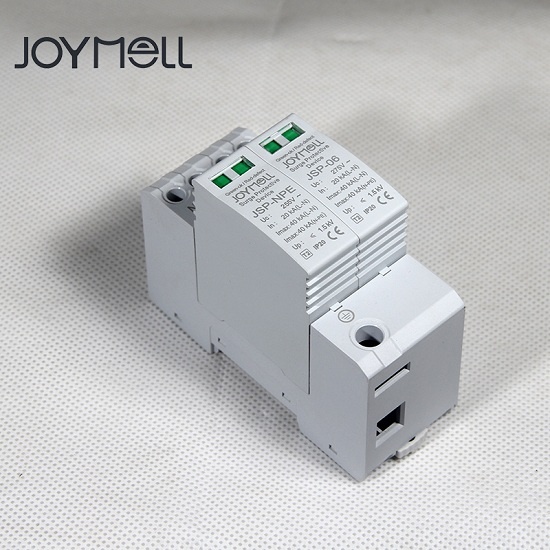

JSP-06 AC Surge protector

Pole 1P+N 2P 3P+N 4P
Rated working voltage Un(V) 275V/385V 420V/440V
In(8/20μs)(kA) 20 20 20 20
Imax(8/20μs)(kA) 40 40 40 40
Imax N-PE(kA) 60 60 60 60
Protection area Class C / Type II
Up(L-N)(kV) 1.4 1.4 2.2 2.2
Up(N-PE)(kV) 1.5 1.5 1.5 1.5
tA 25ns(L-N), 100ns(N-PE)
Max fuse current 125A gl/gG
Install 35mm Din-rail
Protection grade IP20
Signal contact Optional
Standards IEC61643.1, GB18802.1
