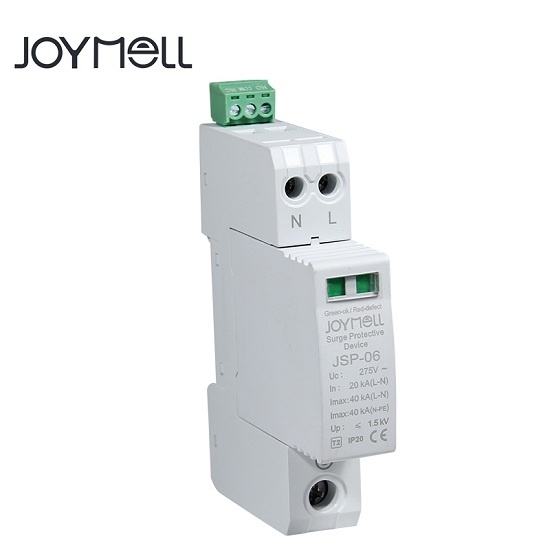

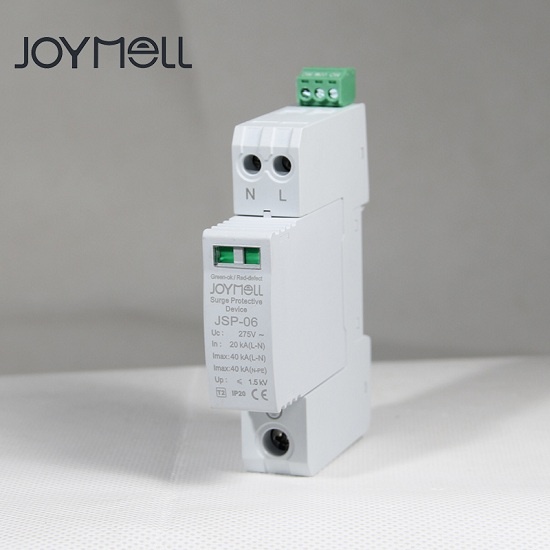

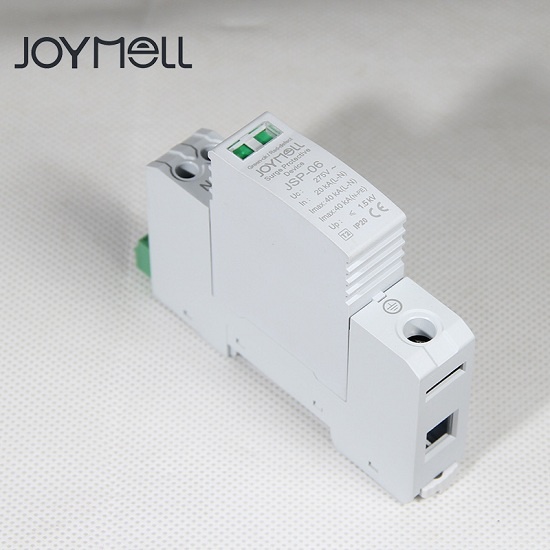

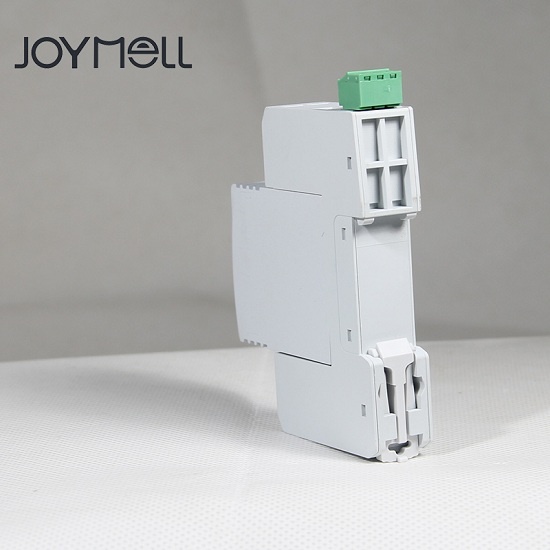

Compact type AC SPD 1P+N JSP-06
- Product No.：202163133322
Compact type AC SPD 1P+N JSP-06
JSP-06 AC Surge protector |
||||
| Pole | 1P+N | 2P | 3P+N | 4P |
| Rated working voltage Un(V) | 275V/385V | 420V/440V | ||
| In(8/20μs)(kA) | 20 | 20 | 20 | 20 |
| Imax(8/20μs)(kA) | 40 | 40 | 40 | 40 |
| Imax N-PE(kA) | 60 | 60 | 60 | 60 |
| Protection area | Class C / Type II | |||
| Up(L-N)(kV) | 1.4 | 1.4 | 2.2 | 2.2 |
| Up(N-PE)(kV) | 1.5 | 1.5 | 1.5 | 1.5 |
| tA | 25ns(L-N), 100ns(N-PE) | |||
| Max fuse current | 125A gl/gG | |||
| Install | 35mm Din-rail | |||
| Protection grade | IP20 | |||
| Signal contact | Optional | |||
| Standards | IEC61643.1, GB18802.1 | |||
Previous Product：Compact type AC SPD 3P+N JSP-06
