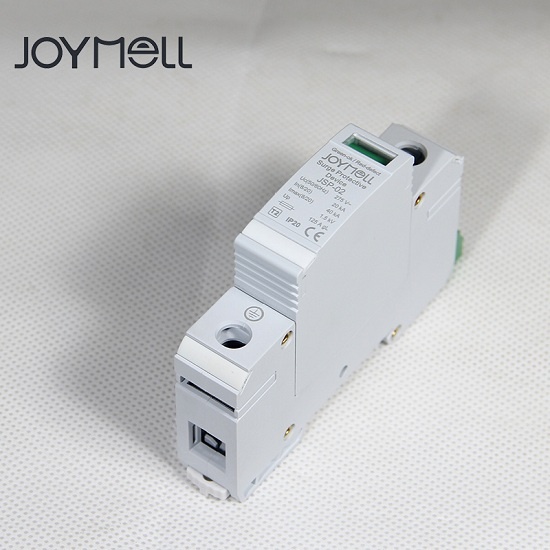

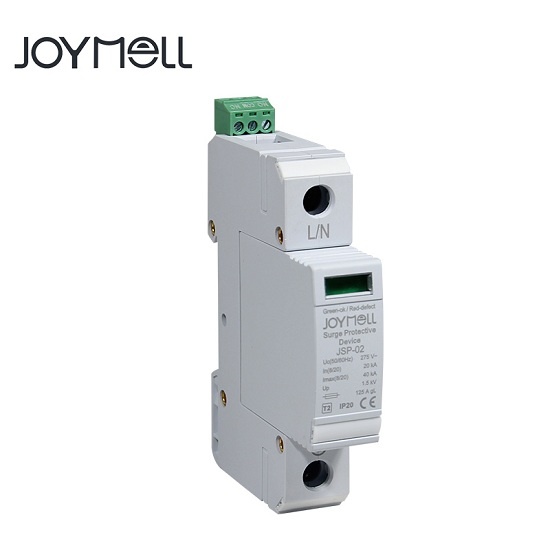

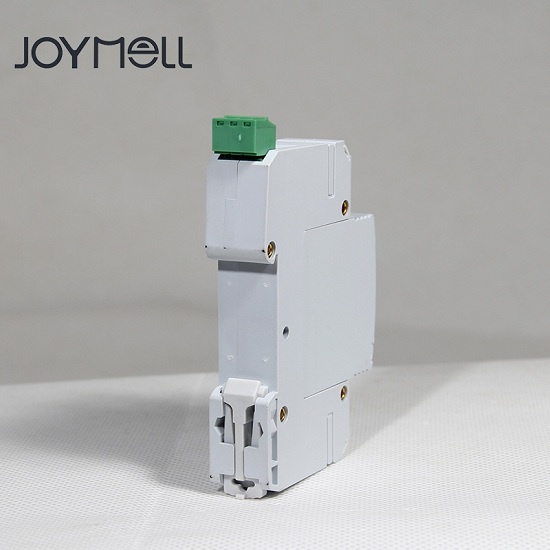

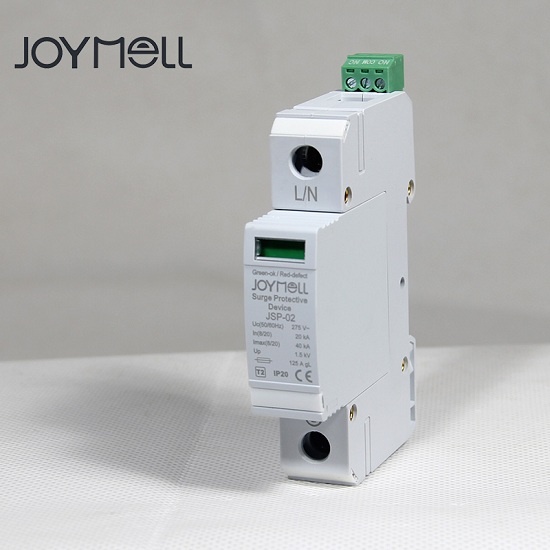

1P AC SPD 40kA JSP-02
- Product No.：20216411344
1P AC SPD 40kA JSP-02
JSP-02-1P AC Surge protector |
|||||
| Pole | 1P | ||||
| Rated working voltage Un(V) | 230V/275V | ||||
| In(8/20μs)(kA) | 20 | ||||
| Imax(8/20μs)(kA) | 40 | ||||
| LPZ Protection area | Class C / Type II | ||||
| Up(kV) | ≦2.5 | ||||
| Install | 35mm Din-rail | ||||
| Protection grade | IP20 | ||||
| Signal contact | Optional | ||||
| Standards | IEC61643.1, GB18802.1 | ||||
