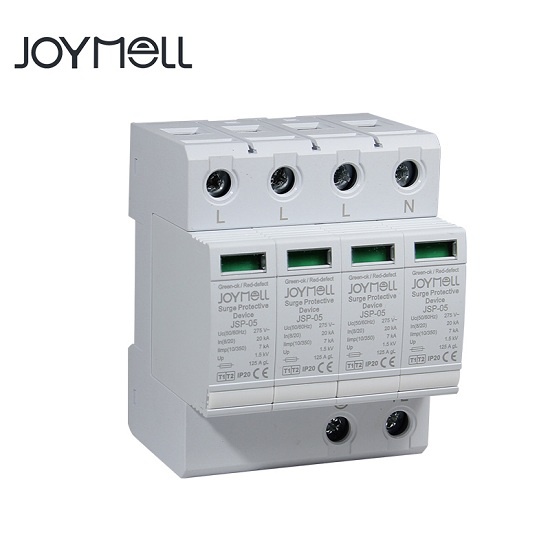

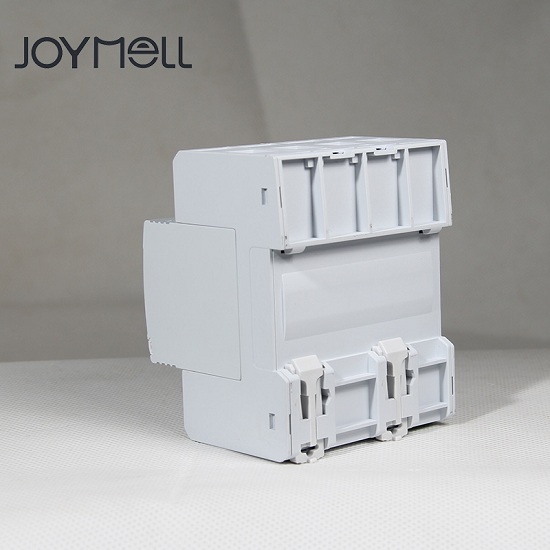

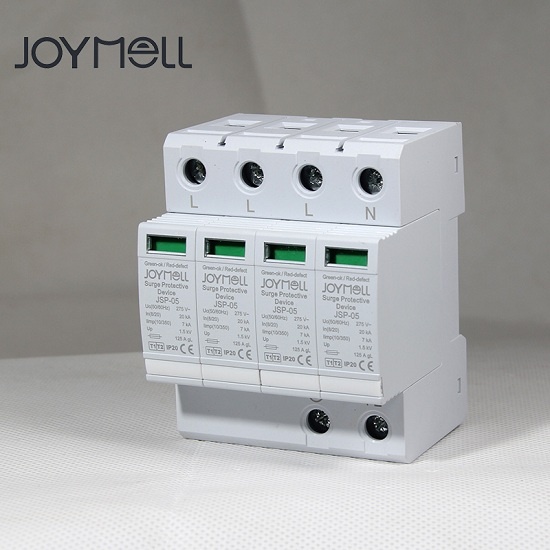

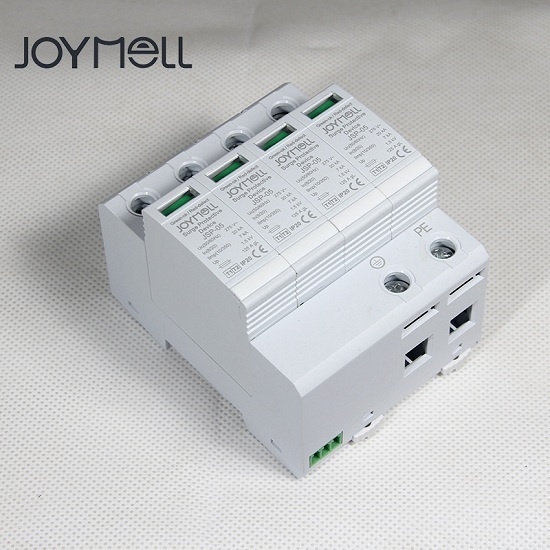

B+C Class I+II Surge Protection Device AC SPD 7kA
- Product No.：20216313487
B+C Class I+II Surge Protection Device AC SPD 7kA
JSP-05 B+C T1+T2 Surge protector |
||||
| Pole | 1P+N | 2P | 3P+N | 4P |
| Rated working voltage Un(V) | 275V | |||
| In(8/20us)(kA) | 20 | 20 | 20 | 20 |
| Imax(8/20μs)(kA) | 40 | 40 | 40 | 40 |
| Limp(10/350μs) | 7kA | |||
| Protection area | Class B+C / Type I+ II | |||
| Up(L-N)(kV) | 1.5kV | |||
| tA | 25ns(L-N), 100ns(N-PE) | |||
| Max fuse current | 125A gl/gG | |||
| Install | 35mm Din-rail | |||
| Protection grade | IP20 | |||
| Signal contact | Optional | |||
| Standards | IEC61643.1, GB18802.1 | |||
