4P AC SPD 40kA JSP-02

4P AC SPD 40kA JSP-02

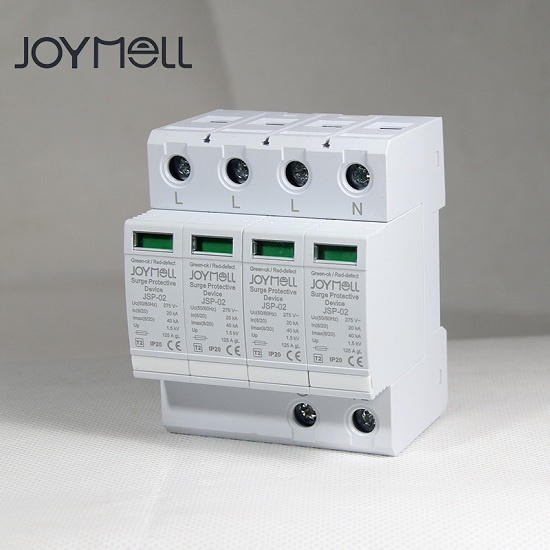

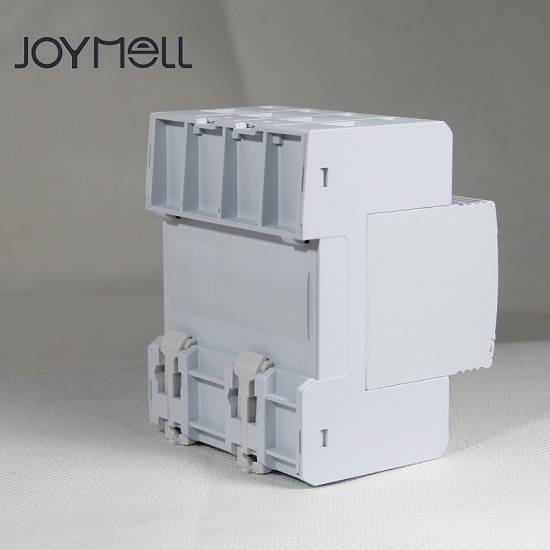

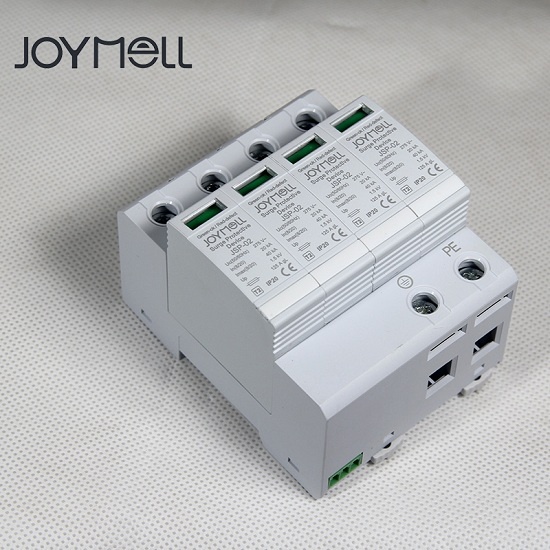

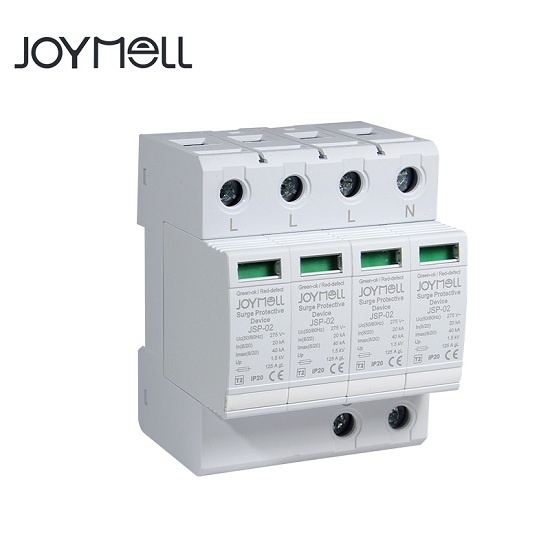

JSP-02-4P AC Surge protector

Pole 4P
Rated working voltage Un(V) 230V/275V/385V
In(8/20μs)(kA) 20
Imax(8/20μs)(kA) 40
LPZ Protection area Class C / Type II
Up(kV) 2.5
Install 35mm Din-rail
Protection grade IP20
Signal contact Optional
Standards IEC61643.1, GB18802.1
